2-wire, no polarity
The outdoor station and indoor monitor use a 2-wire connection. Confirm distance, voltage and cable conditions at the site.
2-WIRE IP / KEYPAD ENTRY

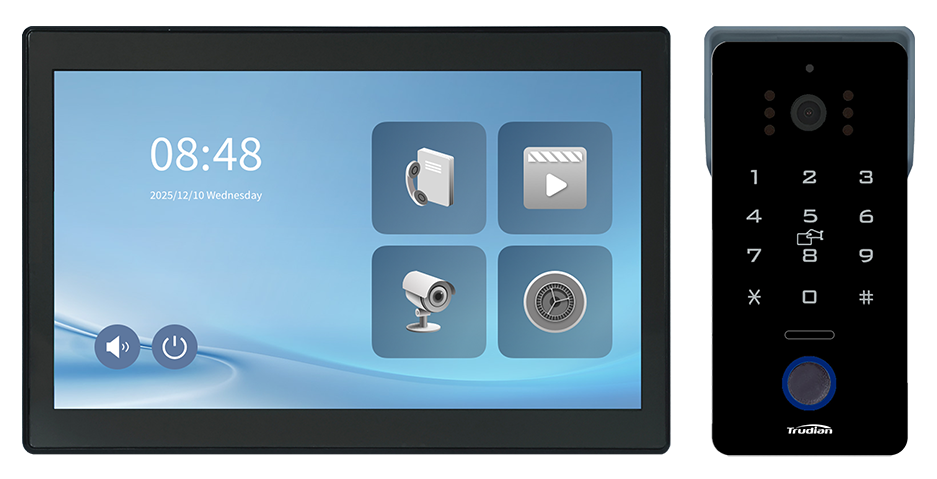

TD-D80AR85M2-Wire IP Video Intercom Kit with Keypad
A 2-wire IP kit for private entries and retrofit projects, pairing a 10.1-inch IPS indoor monitor with a 2MP outdoor station that adds password keypad and IC card unlocking. The supplied data sheet also lists 2.4 GHz WiFi, Tuya app integration, visitor records and remote unlocking.
10.1-inch monitor / keypad stationSystem path2-wire connection with no polarity
Indoor monitor10.1-inch IPS, 1024 x 600
Outdoor station2MP / 1080P, 110°, IP65
CredentialsIC card and password keypad
Configuration overview
Add credential choice without changing the 2-wire project path.
Use the model-specific data sheet to review credential policy, lock wiring, power and mobile workflow before the system is quoted.
RFID plus keypad
The outdoor station supports 13.56 MHz IC card unlocking and password keypad access for a broader credential workflow.
10.1-inch IPS monitor
The wall-mounted monitor provides a 1024 x 600 touch display for calls, monitoring, unlock, playback and visitor records.
1080p outdoor camera
The outdoor station is specified at 2MP / 1080P, 110° horizontal view, IR-CUT and six 850 nm infrared LEDs.
Tuya app integration
The published configuration connects over 2.4 GHz WiFi and lists app functions for call, monitor, unlock, cloud storage and playback.
Lock-delay control
Magnetic and electric lock compatibility is listed with lock-delay settings. Confirm the relay and power path for the selected hardware.
Technical record
TD-D80AR85M specifications
Values below are transcribed from the supplied data sheet. Confirm the final revision and destination-market documents before purchase.
| Wiring | 2-wire connection, no polarity |
| Working voltage | DC 12-24V |
| Monitor to station | 0-50 m at 12V; 0-200 m at 24V |
| Station to lock | 0-50 m |
| Power adapter | AC 100-240V input; DC 18V 2A output |
| Installation | Wall-mounted |
| Display | 10.1-inch IPS touch screen |
| Resolution | 1024 x 600 |
| Dimensions | 245 x 158 x 22 mm |
| OS | Embedded Linux |
| Memory | 128 MB RAM; 16 MB flash |
| Storage | External TF card up to 512 GB; 1,000 photo capacity |
| Camera | 2 million pixels / 1080P |
| Horizontal view | 110° |
| Night vision | IR-CUT; 6 x 850 nm infrared LEDs |
| Ingress rating | IP65 |
| Credentials | 13.56 MHz IC card; password keypad |
| Card capacity | Up to 1,000 cards |
| Lock control | Magnetic and electric locks; delay setting |
| Dimensions | 146 x 75 x 37 mm |
| Network | 2.4 GHz WiFi |
| App | Tuya |
| Audio | Two-way audio |
| Functions | Call, photo, video, monitor, unlock, visitor record, pedestrian detection, calendar and playback |
| Call duration | 2 minutes |
| Environment | -20 C to 70 C; 10%-70% RH |
Deployment fit
Use the keypad where credential choice matters at the door.
Door hardware and access policy still determine the final configuration. Treat the model record as the technical starting point.
Houses and villa gates
Offer IC card or password access from the outdoor station while keeping the indoor monitor workflow visible.
Existing 2-wire routes
Measure cable distance and available voltage before approving the monitor-to-station path.
Distributor and OEM programmes
Confirm credential policy, packaging, app, documentation and destination market in the written quotation.
Download the TD-D80AR85M data sheet
Keep the model document with the wiring and lock brief so the keypad, card, power and packing-list assumptions remain visible.
