2-wire retrofit path
The outdoor station and indoor monitor use a 2-wire connection with no polarity. Confirm distance, voltage and cable conditions at the site.
2-WIRE IP / COMPACT KEYPAD ENTRY

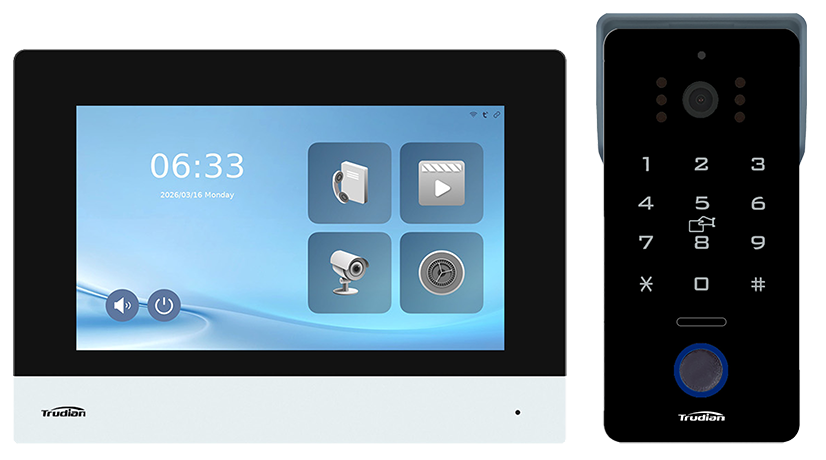

TD-D80AR34WCompact 2-Wire IP Video Intercom Kit
A compact 2-wire IP kit with a 7-inch IPS indoor monitor and a 2MP outdoor station with password keypad and IC card unlocking. The supplied data sheet lists 2.4 GHz WiFi, Tuya app integration, visitor records, remote unlocking and a 1024 x 600 display.
7-inch monitor / keypad stationSystem path2-wire connection with no polarity
Indoor monitor7-inch IPS, 1024 x 600
Outdoor station2MP / 1080P, 110°, IP65
CredentialsIC card and password keypad
Configuration overview
Keep the door workflow compact while retaining the full 2-wire kit path.
Review monitor size, credential policy, lock wiring, power and mobile workflow together before the model is quoted.
Compact 7-inch monitor
The wall-mounted IPS touch monitor uses a 1024 x 600 display in a 200 x 140 x 20 mm body for space-conscious installations.
RFID plus keypad
The outdoor station supports 13.56 MHz IC card unlocking and password keypad access for a flexible entry policy.
1080p outdoor view
The outdoor station is specified at 2MP / 1080P, 110° horizontal view, IR-CUT and six 850 nm infrared LEDs.
Tuya app integration
The published configuration connects over 2.4 GHz WiFi and lists call, monitor, unlock, cloud storage and playback functions.
Records and alerts
Photo, video, visitor record, pedestrian detection, calendar display and alarm messages are listed for the system workflow.
Technical record
TD-D80AR34W specifications
Values below are transcribed from the supplied data sheet. Confirm the final revision and destination-market documents before purchase.
| Wiring | 2-wire connection, no polarity |
| Working voltage | DC 12-24V |
| Monitor to station | 0-50 m at 12V; 0-200 m at 24V |
| Station to lock | 0-50 m |
| Power adapter | AC 100-240V input; DC 18V 2A output |
| Installation | Wall-mounted |
| Display | 7-inch IPS touch screen |
| Resolution | 1024 x 600 |
| Dimensions | 200 x 140 x 20 mm |
| OS | Embedded Linux |
| Memory | 128 MB RAM; 16 MB flash |
| Storage | External TF card up to 512 GB; 1,000 photo capacity |
| Camera | 2 million pixels / 1080P |
| Horizontal view | 110° |
| Night vision | IR-CUT; 6 x 850 nm infrared LEDs |
| Ingress rating | IP65 |
| Credentials | 13.56 MHz IC card; password keypad |
| Card capacity | Up to 1,000 cards |
| Lock control | Magnetic and electric locks; delay setting |
| Dimensions | 146 x 75 x 37 mm |
| Network | 2.4 GHz WiFi |
| App | Tuya |
| Audio | Two-way audio |
| Functions | Call, photo, video, monitor, unlock, visitor record, pedestrian detection, calendar and playback |
| Call duration | 2 minutes |
| Environment | -20 C to 70 C; 10%-70% RH |
Deployment fit
Use the compact monitor where the room and door still need one reviewed path.
The smaller screen does not remove the need to confirm cable, lock, power, app and documentation requirements.
Space-conscious entry
Use the 7-inch monitor where a smaller indoor footprint suits the residence or private entry.
Existing 2-wire routes
Measure cable distance and available voltage before approving the monitor-to-station path.
Distributor and OEM programmes
Confirm credential policy, packaging, app, documentation and destination market in the written quotation.
Download the TD-D80AR34W data sheet
Keep the model document with the installation brief so the compact monitor, keypad, card, power and packing-list assumptions remain visible.
